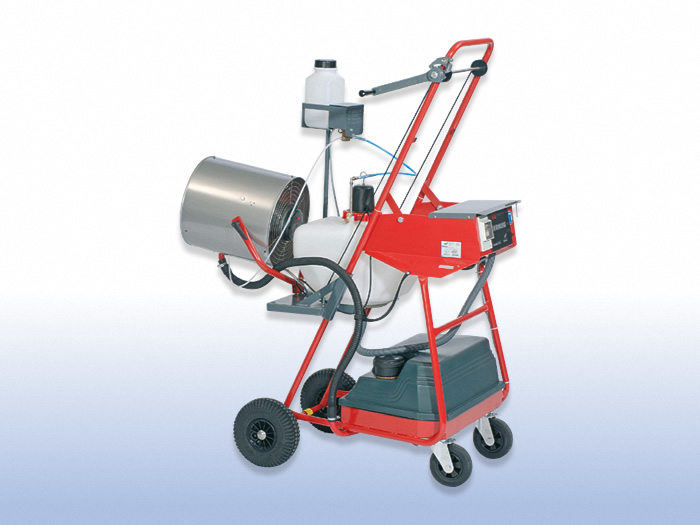

TURBOSTAR
Motor - 0.75 kW, Singel phase
Speed - 50 Hz= 2800 rpm, 60 Hz = 3400 rpm
Compressor - Oil & Maintenance free rotation pump
Air volume - 35 cubic meter per hours
Drive - V-Belt
Fan - Motor, 320 w, Singel phase
Agitator - 24 V DC motor with thermal-fuse & on-off switch
Flushing - Automatic
Shutdown - Automatic
Output - 2.9-8.7 ltrs/hr, ULV mode
Flush Tank - 2.5 ltrs
Spray Tank - 34 ltrs |
 |
 |

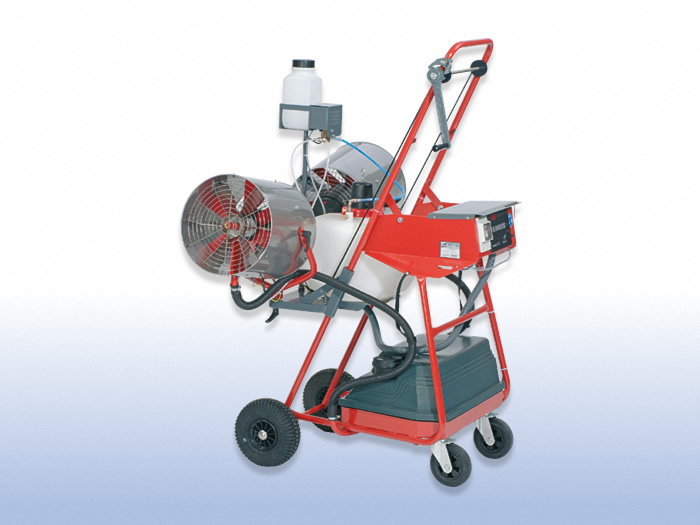

TWINSTAR
Motor - 1.5 kW, Three phase
Speed - 50 Hz= 2800 rpm, 60 Hz = 3400 rpm
Compressor - Oil & Maintenance free rotation pump
Air volume - 70 cubic meter per hours
Drive - V-Belt
Fan - Motor, 2 X 320 w, Three phase
Agitator - 24 V DC motor with thermal-fuse & on-off swt
Flushing - Automatic
Shutdown - Automatic
Output - 5.8-17.4 ltrs/hr, ULV mode
Flush Tank - 2.5 ltrs
Spray Tank - 34 ltrs
|
| |

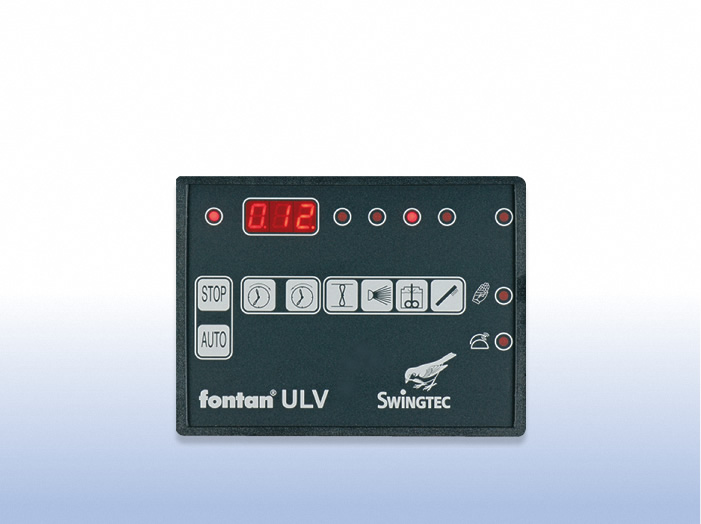

Control panel:
FONTAN Turbostar,
FONTAN Twinstar |
|
 |
 |

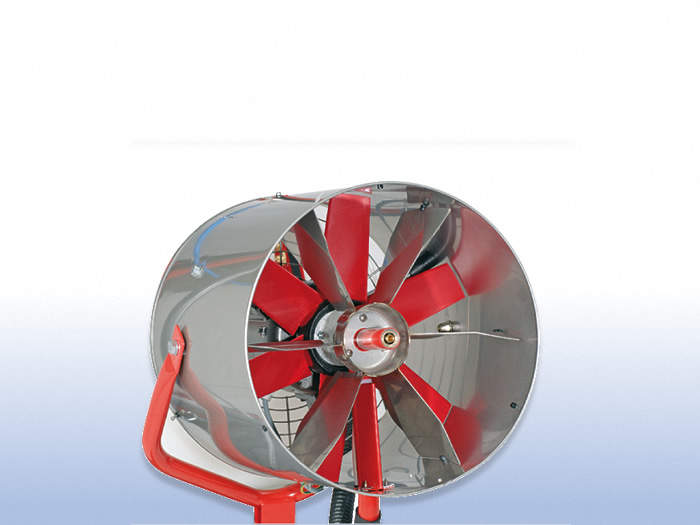

Fan with stator |
| |
|
